JBL M Patch Active 1 Precision Monitor Control

Description

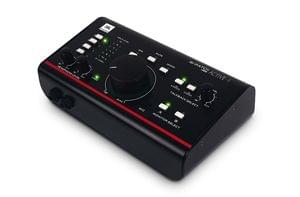

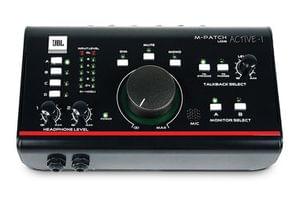

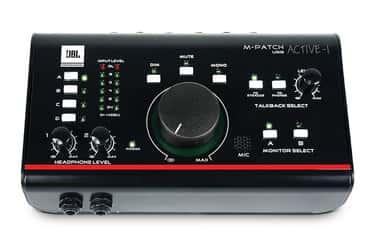

JBL M-Patch Active-1 Precision Monitor Control

JBL M-Patch Active-1 Precision Monitor Control is introducing with three stereo analog outputs plus USB and four input sources (3 x stereo analog and 1 x USB). Plus its core features offer seamless A/B switching among input signals and output speaker monitor systems, the ACTIVE-1 gives a complete balance of audio monitoring functions, with high-quality volume control, mute, mono summing, and dim (ducking). A convenient activated footswitch talk-back function finished with an on-board condenser microphone and selectable routing has also been integrated, delivering the ACTIVE-1 the perfect low-cost solution for a wide range of studio production applications.

Perfectly designed to give the most economical noise operation potential in an active monitor controller, the ACTIVE-1 is perfect for uses where both signal boost and attenuation is needed. Plus both PASSIVE-1, the ACTIVE-1 also incorporates LED level metering and comfortable switch-selectable +4dBu/-10dBV input stage operation.

This ACTIVE-1 is equipped with an on-board USB, allowing for direct digital audio recording and playback while working with a computer DAW. Housed in a strong metal chassis and provided with an enduring array of switches and reliable connectors, the ACTIVE-1 is made to give years of problem-free operation.

 Product Features:

• 4 inputs, 4 outputs with USB Input and Output.
• 2 headphone amps with Footswitch-Controlled Talkback.
• Built-in Talkback Mic, Mono summing.
• Dim switch and A/B Speaker Switching.
• Level meters with Precision Rotary Attenuator.

  ---

Product details:

• Brand: JBL
• Model Number: M-Patch Active-1
• In-room response (2p): Below 18 Hz
• Frequency Range: Line Level Inputs and Outputs +0.5 (-1dB 10hz to 30kHz)
• Noise Monitor A B, Studio Outputs, 2-Track: -92dBu Typical
• Outputs:
• Line Level (-10dB) -10dBu/+8dBu (NOM/MAX) ; Line Level (+4dB) +4dBu/+22dBu (NOM/MAX)
• Dynamic Range: Line Inputs to outputs 114dB minimum
• Crosstalk Mute/Level OFF: 92dB @1kHz
• Volume Control Range: Dim Switch -20dB; Master Volume studio output gain 34dB max
• USB:  Channels (2) ; Drivers (Legacy type and ASIO) ; Compatibility (All current USB Audio systems)
• Included Power Supply: AC 9V, 1200 MA
• Format: USB 1/2
• Channels: 2
• Drivers: Legacy type and ASIO
• Compatibility: All current USB audio systems

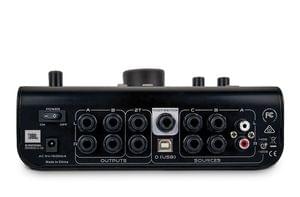

• Output Connectors: 6 x TRS 6.5mm Balanced/Unbalanced
• Input Connectors: 4 x TRS 6.5mm Balanced/Unbalanced
• Width: 330 mm
• Depth: 191 mm
• Height: 127 mm
• Weight: 0.9 kg
•  1-year manufacturer warranty

• Country of origin: China
• Manufacturer details: Jbl
• Packer details: Jbl
• Importer details: Jbl
