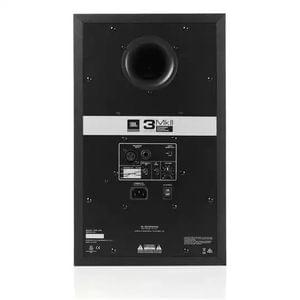

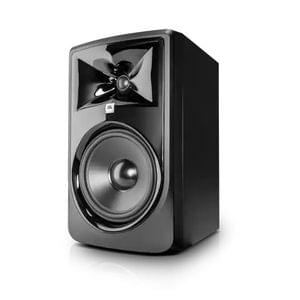

JBL Professional 308PMKII-EU 8-Inch 2-Way Powered Studio Monitor Speaker

1 Reviews
1 Q & A


All Pre-Paid Orders Will Be Dispatched in Next 24 Hours.

money_offMRP: ₹ 28,150
new_releasesDiscount Available (50 %)
loyaltyYour Price : ₹ 14,075
account_balanceEMI options available - view plans
store Powered By : Bhandari Musical Shoppe
In Stock

offline_pin Brand : Jbl
line_style Category : STUDIO MONITORS
star Rating: 5
nature (SKU : Jbl_1608191496734)

Description

JBL Professional 308PMKII-EU 8-Inch 2-Way Powered Studio Monitor Speaker


JBL Professional 308PMKII-EU 8-Inch 2-Way Powered Studio Monitor Speaker is introducing with revolutionary JBL Image Control Waveguide and refined transducers. It gives well-defined imaging, remarkable detail, amazing dynamic range, and a wide sweet spot which improves the critical listening abilities of any modern workspaces. Equipped with patented technologies derived from the JBL M2 Master Reference Monitors and 7 Series, and sporting a modern, smooth design, JBL 305P MkII offers amazing performance and a delightful mix experience at an affordable accessible price. JBL’s Image Control Waveguide gives precise imaging and a wide, room-friendly sweet spot, which implies you'll experience the more fabulous depth and ambiance in recordings. Exact details can be heard, also in a dense mix. JBL's 308PMKII also features a Patented Slip Stream low-frequency port that operates in concert with the woofer to give a better deep bass response at all playback levels. The dual-flared configuration of the port is perfectly engineered for superior reduced turbulence and low-frequency extension. Design developments in the JBL 3 Series MkII develop in greater low-frequency linearity, with the lower harmonic distortion and optimized transient response.


Product Features:

  • Patented Image Control Waveguide for broad, room-friendly sweet spot and detailed imaging.
  • Next-generation JBL transducers for improved linearity and optimized transient response.
  • Double integrated, custom Class-D amplifiers give 112 watts of power for high output and powerful range.
  • Advanced Boundary EQ settings ideal for low-frequency variants.
  • HF Trim switch improves high-frequency output to personal preferences or room acoustics.
  • Designed to JBL Linear Spatial Reference plan criteria for excellent accuracy in any working space.
  • Active JBL 100-hour full-power test assures years of reliability.
  • Flexible connectivity with balanced XLR and 1/4 inch TRS inputs, +4dBu / -10dBV input-sensitivity switch and adjustable volume control.
  • Smooth, contemporary design gives a visual upgrade to any studio.

Product details:

  • Brand: JBL
  • Model: 308PMKII-EU
  • LF Driver: 203mm
  • HF DRIVER SIZE: 25mm
  • HF DRIVER TYPE: Soft dome
  • Crossover: 1800Hz 4th order acoustic Linkwitz-Riley
  • INPUT SENSITIVITY (-10dBV INPUT): 92dB / 1m
  • Power Configuration: Bi-amplified
  • HF DRIVER POWER AMP: 56W, Class-D
  • LF Driver Power Handling: 56W, Class-D
  • Frequency Response (±3 dB): 45Hz – 20kHz
  • Frequency Response (-10dB): 37Hz – 24kHz
  • LOW FREQUENCY EXTENSION (-10dB): 37Hz
  • Maximum Continuous SPL: 102dB
  • Maximum Peak SPL: 112dB
  • MAXIMUM PEAK INPUT LEVEL(-10dBV / +4dBu): +6dBV / +20.3dBu
  • SYSTEM DISTORTION CRITERIA: <10% THD at maximum output with full compressor/limiter engagement
  • ELECTRICAL DISTORTION CRITERIA: 0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output
  • Signal to Noise Ratio: 75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output
  • Coverage Angle: 120° x 90°
  • Input Connectors: 1 x XLR female, 1 x TRS female, balanced
  • HF TRIM CONTROL: -2dB, 0dB, +2dB
  • BOUNDARY EQ: LF Shelf @ 50Hz: -3dB, -1.5dB, 0dB
  • AC INPUT VOLTAGE: 100 – 240VAC (±10%), 50 / 60Hz
  • ENCLOSURE TYPE:  Ported
  • Enclosure: 15mm MDF
  • ENCLOSURE FINISH: Matte black PVC
  • BAFFLE CONSTRUCTION: Injection-molded structural ABS
  • CABINET DIMENSIONS: 419 x 254 x 308mm
  • DISPLAY CARTON: 408 x 285 x 328mm
  • SHIPPING CARTON: 418 x 292 x 338mm
  • Net Weight (each): 6.1 kg
  • 1-year manufacturer warranty
