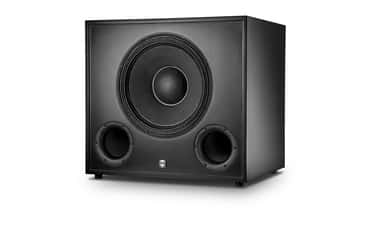

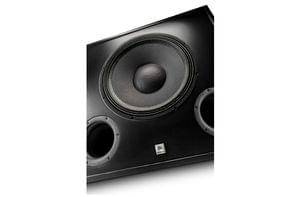

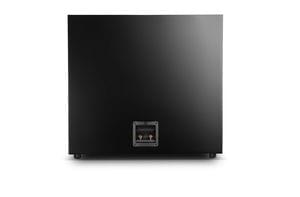

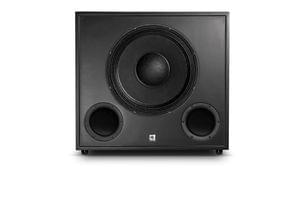

JBL SUB18 High-Output Studio Subwoofer

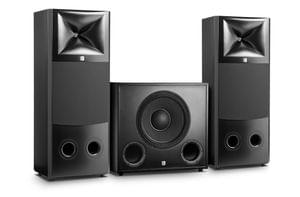

JBL SUB18 High-Output Studio Subwoofer is perfectly designed to offer you high-output with an 18-inch studio subwoofer. JBL offers its most dynamic studio subwoofer for utilization in which very high constant output and very low-frequency response are needed. Including in-room response below 18Hz and 137 dB peak output, the SUB18 gives fantastic performance for requiring dance music production, while giving excellent accuracy required in movie post-production applications. Additionally, this JBL’s M2 Master Reference Monitor system, the SUB18 provides three times higher output from the system.

 Product Features:

  • Most powerful studio subwoofer.
  • Response below 18Hz and 137 dB peak output.
  • Crown iTech HD Power Amplification.
  • One JBL model 2269H, 18-inch LF Transducer.
  • 18mm 11-ply Baltic Birch Plywood Enclosure.
  • Recommended Amplifier Power 3,500 to 4,000W into 8Ω.

Product details:

  • Brand: JBL
  • Model Number: SUB18
  • In-room response (2p): Below 18 Hz
  • Frequency Response, -10 dB (4p measurement): 20.6 Hz
  • Frequency Response, -6 dB (4p measurement): 23.1 Hz
  • Maximum Peak Output (2p): 137 dB SPL
  • System Input Power Rating, AES/2 Hr: LF 2000Wcontinuous/8000W peak
  • Sensitivity: 92 dB @ 1m, 2.83 V
  • Recommended Amplifier Power: 3,500 to 4,000 W into 8Ohms
  • Recommended Signal Processing: Crown iTech HD PowerAmplification. Preset for use with JBL M2 available
  • LF Transducer: One JBL model 2269H, 18-inch (457 mm);100mm (4-inch) dual voice coils, dual neodymium magnets. Differential Drive Direct Cooled
  • Rated Impedance: 8 Ohms
  • Enclosure: 18mm 11-ply Baltic Birch Plywood
  • Finish: Black Lacquer
  • Input Connectors: 2 ea. Push Terminals
  • Recommended Wire: 12-Gauge
  • Dimensions HxWxD: 27 x 30 x 24 inches (685 x 762 x620 mm)
  • Weight: 100 lbs ( 45 kg)
  •  1-year manufacturer warranty
