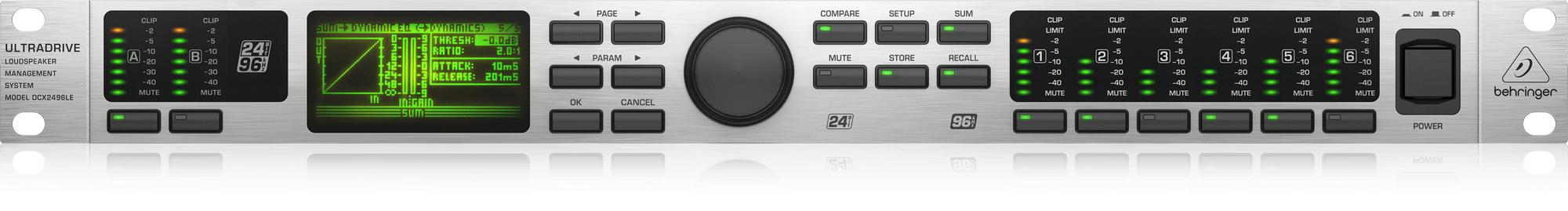

Behringer Ultra-Drive DCX2496LE Loudspeaker Management System

Description

Behringer Ultra-Drive DCX2496LE Loudspeaker Management System perfectly designed to offer you amazing AKM 24-bit/96kHz digital converters for excellent signal integrity and a sturdy dynamic range of 120dB. It comes with four different mono and stereo output operating modes, your choice of Bessel, Linkwitz-Riley filters, and Butterworth, adjustable delays for all inputs and outputs, limiters across all output channels, and a potpourri of EQ options.

This Behringer UltraDrive DCX2496LE is all about providing you with huge flexibility. Including its 2 analog inputs and 6 analog outputs, you get the best flexibility in simply one rack space. Professional-end Cirrus Logic 24-bit/96kHz D/A and A/D converters provide you with major signal integrity and a breathtaking dynamic range of 120dB. You get demanding dynamic EQs for level-dependent equalization and extremely musical parametric, selectable for all outputs and inputs. Zero-attack limiters across all output channels assure optimized signal and loudspeaker safety.

It provides you 4 different mono/stereo output operating modes, all having unique crossover filter types (Bessel, Butterworth, and Linkwitz-Riley) with selectable roll-off characteristics from 6 to 48dB/octave. With Ultra-Drive Pro you get adjustable delays for all outputs and inputs, allowing you automatically or manually correct for variables such as room temperature, phase, and arrival time differences. A sum signal can easily be extracted from the three inputs.

Product Features:

• Premium 2 analog inputs and 6 analog outputs for a broad range of options
• 24-bit/96kHz Cirrus Logic A/D and D/A converters for massive dynamic range (120dB) and phenomenal signal integrity
• Energetic EQs for level-dependent equalization and very musical Parametric EQs, selectable for all ins and outs
• Multiple EQ types (LP/BP/HP) for each input and output
• Zero-attack limiters on every output channel for complete speaker protection
• 4 different mono and stereo output operating modes
• Unique crossover filter types include Bessel, Butterworth, and Linkwitz-Riley with selectable roll-off characteristics
• Adjustable delays on outputs and inputs
• Create up to 60 user-defined presets
• Servo-balanced, gold-plated XLR connectors for inputs and outputs
• Professional-quality components and sturdy construction can handle the rigors of the road

Product details:

• Brand: Behringer
• Model Number: Ultra-Drive DCX2496LE
• Number of Channels: 2
• Presets - User: 60
• Analog Inputs: 2 x XLR
• Analog Outputs: 6 x XLR
• Rack Spaces: 1U
• Height: 1.75 inch
• Depth: 8.5 inch
• Width: 19 inch

Weight: 4.2 Kg

• Country of origin: China
• Manufacturer details: Behringer
• Packer details: Behringer
• Importer details: Behringer
