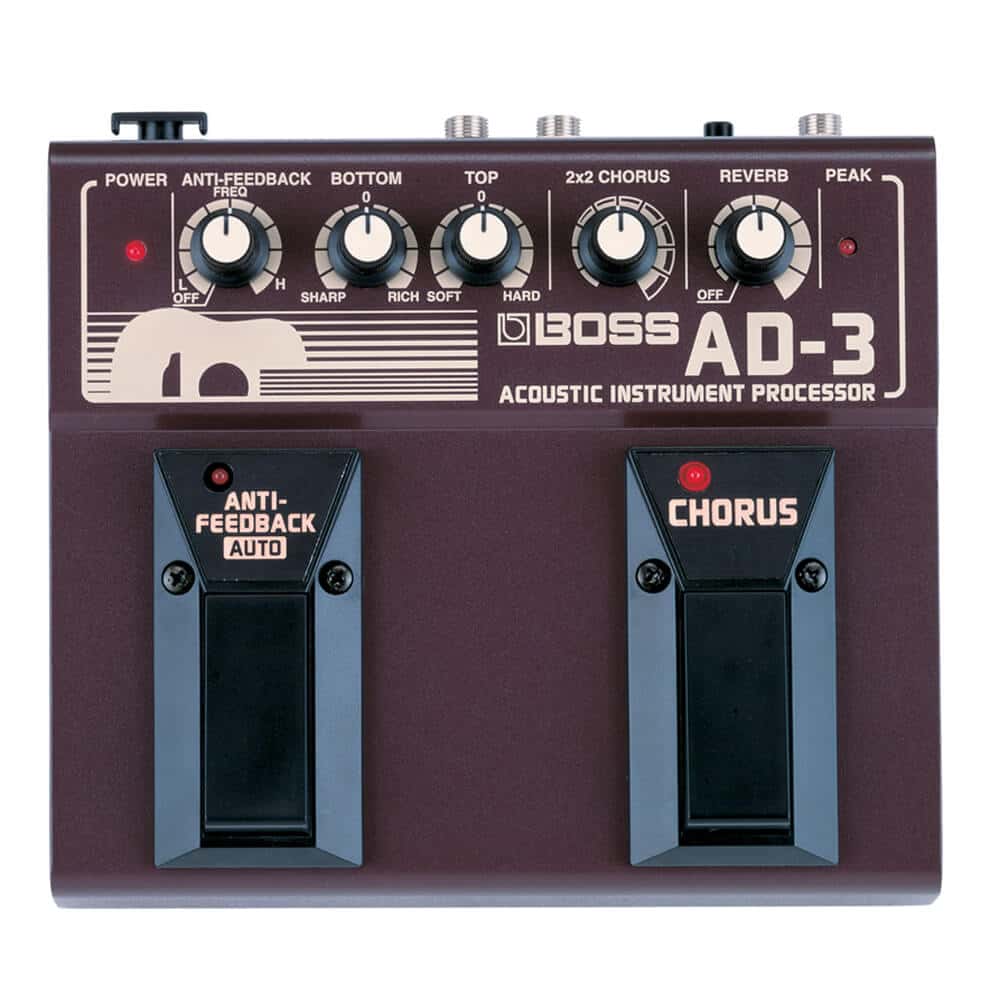

Boss AD-3 Acoustic Instrument Processor

Description

Boss AD-3 Acoustic Instrument Processor

Boss AD-3 Acoustic Instrument Processor pedal solves the problem of thin tone and feedback by giving guitarists a tone, reverb, chorus and Anti-Feedback control in a high-quality compact pedal. It has built-in foot-switchable 2x2 Chorus that provides a smooth effect which can be precisely adjusted using an onboard depth control, adding just the right amount of stereo. Boss AD-3 highlights onboard tone controls, aptly named Bottom and Top. The controls are more advanced from simple EQ knobs that work differently when boosted and cut. The Top knob boosts high-end brilliance or can be used to reduce the thin, dry sound character of most piezo and magnetic pickups.

Boss AD-3 has built-in Anti-Feedback control which can be manually set or set via footswitch to Auto. Also, this pedal offers the perfect tone-enhancing, feedback-eliminating solution. Boss AD-3 features an adjustable Input control for impedance matching to a variety of acoustic-electric pickup types. Plus, its Output section provides a choice between stereo balanced outputs for direct connection to a PA system, or a dedicated Guitar Amplifier output for plugging into a guitar amplifier. The Bottom knob tunes the low frequencies to add the desired amount of body resonance.

Product Features :

• Foot switchable Bi-Stereo chorus offers split-frequency processing (Low and High) for the natural, smooth chorus effect
• Studio-quality Reverb provides clear, deep reverberation specially tuned for acoustic guitar
• Newly developed Bottom and Top controls offer variable tonal shaping to eliminate dry sound from piezo pickups and add rich, resonant lows and highs
• Special Guitar Amplifier output provides proper impedance and tonal balance for great-sounding connection to a guitar amp
• Stereo balanced outputs allow for direct connection to PA
• Dual Anti-Feedback function can be manually set to eliminate feedback or can be set to Auto mode via foot pedal
• Battery or AC-powered for maximum flexibility

Product Details :

• Brand: Boss
• Model Number: AD-3(T)
• AD Conversion: 20-bit ΔΣ Modulation
• DA Conversion: 20-bit ΔΣ Modulation
• Sampling Frequency: 44.1 kHz
• Nominal Input Level: -10 dBu
• Input Impedance: 4.7 M ohms
• Nominal Output Level:
  • Output: -10 dBu into 10 k ohms
  • Balanced output: -10 dBm into 600 ohms
• Connectors:
  • Input (1/4 inch phones)
  • Outputs (L, R; 1/4 inch TRS phones)
  • DC In
• Power Supply: DC9V Dry Batteries (LR6 (AA) x 6), AC Adaptor
• Current Draw: 90 mA
• Item Weight: 1 Kg
• Dimensions: 17 x 15.6 x 7 cm

• Country of origin: China
• Manufacturer details: Boss
• Packer details: Boss
• Importer details: Boss
