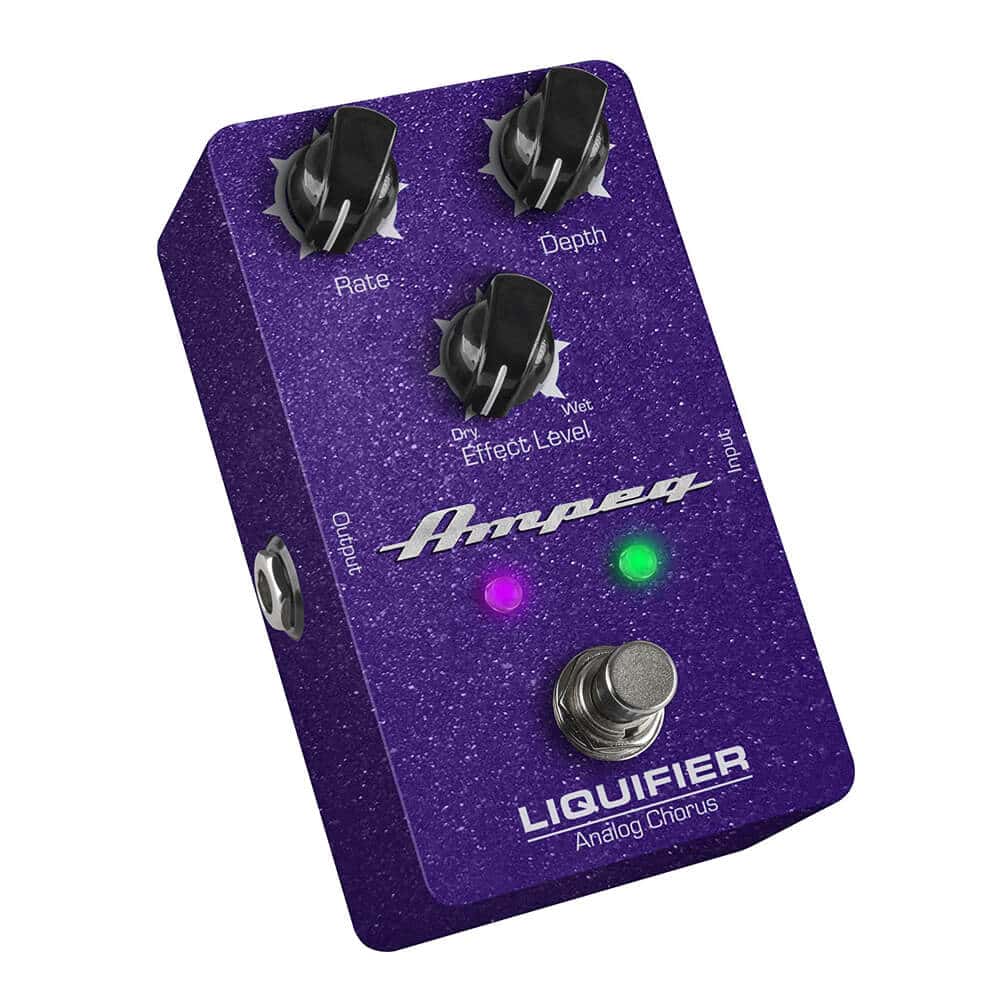

Ampeg LIQUIFIER Analog Chorus Effects Pedal

Description

Ampeg LIQUIFIER Analog Chorus Effects Pedal

Ampeg LIQUIFIER Analog Chorus pedal essentially copies the original signal, slightly alters the timing using delay and combines it with the original signal.

It consists of an intuitive control layout of Rate, Depth, and Effect Level and the true bypass switching that keeps your bass's signal genuine and unaffected when the pedal is loosed. The green LED flashes to indicate the current rate. As the pitches crisscross each other, some high frequencies cancel each other out in a comb-filtering effect that rises. When the two copies are matched exactly in their pitch-shift, they briefly disappear.

LIQUIFIER provides a soft, ethereal sweeping effect that is useful for thickening and for making a particular sound pop out of the mix. Rotate the RATE knob to adjust the speed of the low-frequency oscillator (LFO) from minimum (fully counter-clockwise) to maximum (fully clockwise). Depth knob is used to adjust the amplitude of the rate from minimum intensity (fully counter-clockwise) to maximum intensity (fully clockwise)

• Easy dial in 3-control layout
• Fully metal chassis construction
• Rate, Depth and Effect Level controls
• Works well on any electric instrument
• Dual chorus circuit for perfect modulation
• True bypass switching keeps your tone balanced
• Powerful chorus pedal that is tuned for bass guitars
• Powered by a 9V battery or 9V DC supply (not included)

Product Features :

• Brand: Ampeg
• Model Number: LIQUIFIER
• True Bypass: Yes
• Batteries: 1 x 9V
• Inputs: 1 x 1/4 inch
• Outputs: 1 x 1/4 inch
• Signal-to-Noise Ratio
• 82 dB (Effect Level 100% wet)
• 94 dB (Effect Level 100% dry)
• Maximum Gain +0 dB (Unity)
• Maximum Input Level: 1.1 Vrms (3.0 V peak-peak) before clipping (1.00% distortion), 100 Hz input
• Frequency Response (Input Level 1.00 V peak-peak):
• 100 Hz – 5 kHz, ±3.0 dB (100% Wet)
• 20 Hz – 20 kHz, ±0.5 dB (100% Dry)
• Impedances 1 M ohm (Input) 200 ohm (Output)
• Power Requirements Internal: 9 V Battery
• External: 9 VDC, ≥60 mA
• Maximum Current Draw: 56 mA at 9VDC
• Item Weight: 300 g
• Dimensions: 7 x 11 x 6 cm

• Country of origin: China
• Manufacturer details: Ampeg
• Packer details: Ampeg
• Importer details: Ampeg
