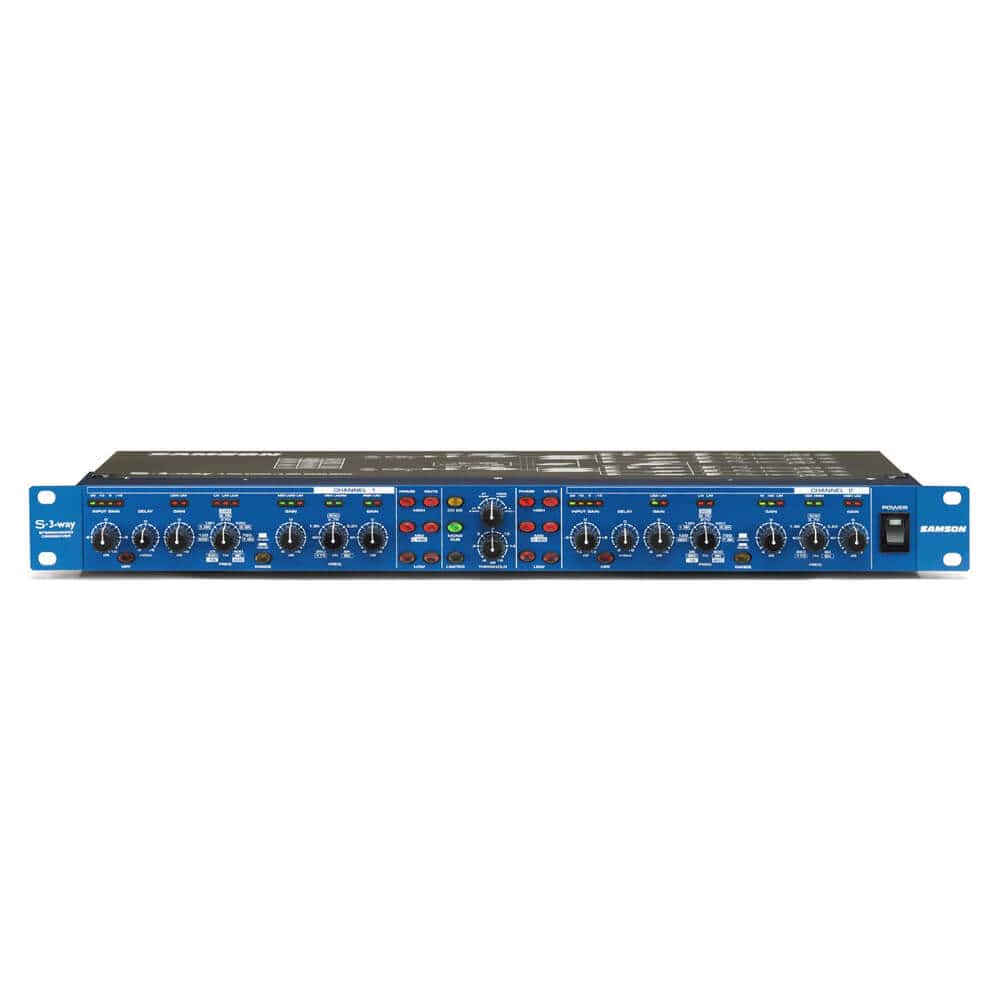

Samson S 3 Way Stereo Mono Crossover

Description

Samson S-3 Way Stereo Mono Crossover

---

Samson S-3 Way Stereo Mono Crossover is introducing in clever 2-way, 3-way and 4-way crossover with a variation. It's a comprehensive 2-way or 3-way stereo crossover. Although its mode is further switchable for application as a 4-way mono crossover.

---

Exceptional input gain features +/-12dB range with Peak indicators and LED metering. It also features a Low, Mid and High-Frequency outputs including +/-6dB of gain control. Respectively output combines a Mute switch for monitoring the specific frequency bands and a phase switch to change the phase of the output.

---

The first crossover point is sweepable in three ranges: from 35Hz to 800Hz, from 350Hz to 8kHz with the 10X-Multiplier switch engaged, or from 16Hz to 400Hz in 4 way low-mode. The second crossover point is sweepable from 175Hz to 4kHz or from 350Hz to 8kHz depending on the setting of the mode switch. This S 3-way also offers a Delay section with up to 2ms of delay to low-frequency time-align outputs for enhanced phase response of any PA system. S 3-way's global segment features a mutable threshold Limiter, a CD specialty (for constant directivity horns) and High Pass Filter.

---

Product Features:

• Stereo 3-way, mono 4-way electronic full-featured crossover.
• Phase switches invert the phase of specific outputs.
• Flexible low-frequency delay for time aligning speaker stacks.
• Mode indicator LEDs offer a smart visual display of operating mode.
• Four Section LED input meter allows easy gain adjustment.
• Perfectly link with-riley, 24 dB/octave filters.
• Peak limiter with peak LED and independent threshold control.
• Exceptional 41 position detent pots and backlit switches.

  ---

Product Details:

• Brand: Samson
• Model Number: S 3 Way
• Series: S Class
• Type: Crossover

• Filter Type: Linkwitz-Riley
• Operating Modes: switchable to mono 4-way, Stereo 2 or 3-way
• Crossover Frequencies
  •  (x10 setting), Mid/High - 350Hz to 8kHz
  • Mono mode: Low/Mid - 18Hz to 400Hz, Mid/High - 175Hz to 4kHz

    ---

105678. Range
        • Input level: -12dB to +12dB
        • Band gain: -6dB to +6dB

2593494. Panel Switches
         • High Pass Filter
         • Mute
         • Phase
         • CD EQ
         • Limiter
         • Mono Sub

1. 2 x XLR

175823408. 6 x XLR

1000. Input Level: +26dBu
1000. Output Level: +26dBu

1182111079681. Response: 10Hz to 90kHz

6192633. >90dBu to >94dBu unweighted
18056907772637. 1U rack, 8 ½ inch deep

Specialties: Built in Limiter with adjustable threshold

1-year manufacture warranty

• Country of origin: China
• Manufacturer details: SAMSON
• Packer details: SAMSON
• Importer details: SAMSON
