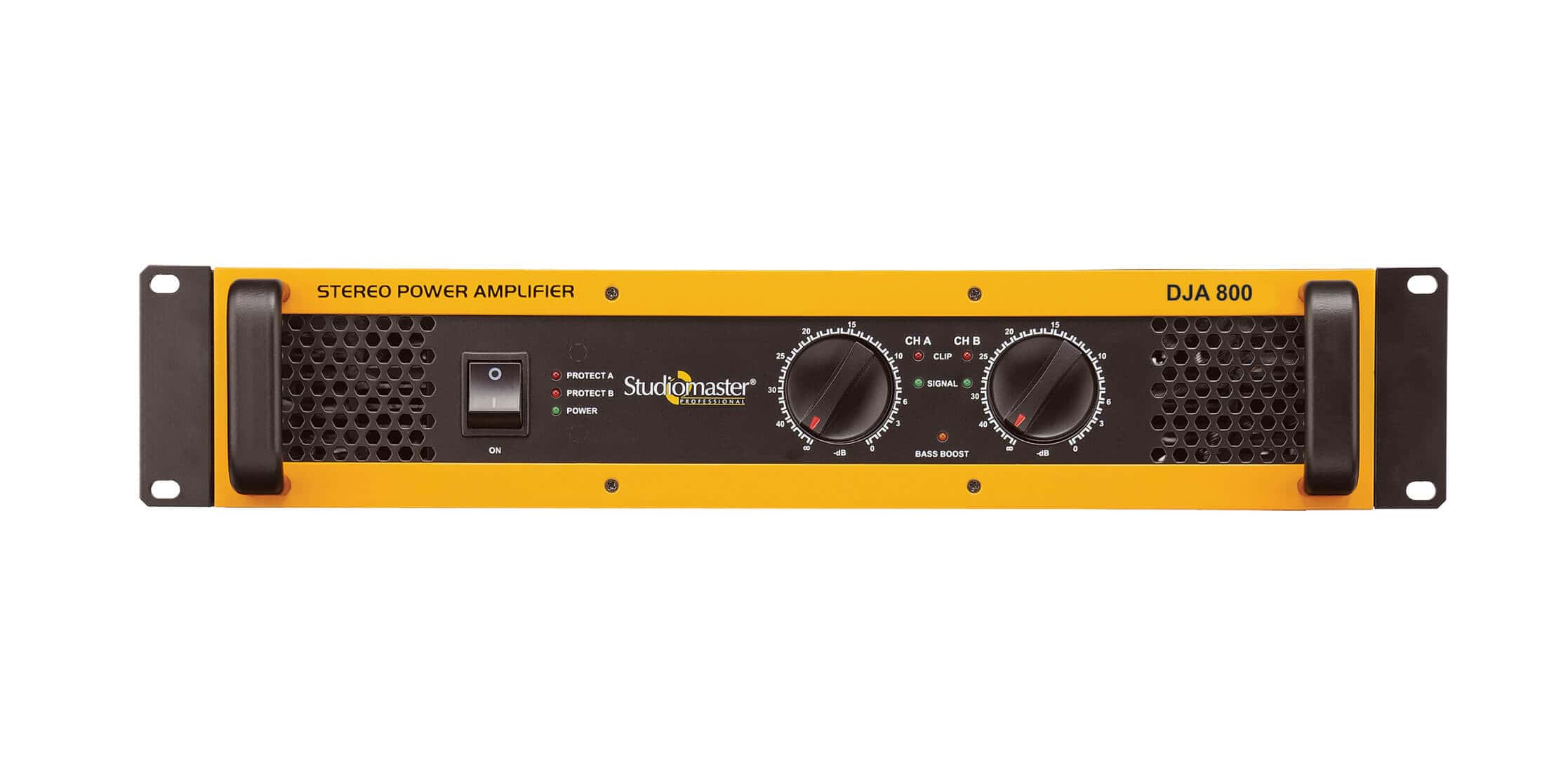

Studiomaster Amplifier DJA 800

Description

Studiomaster Amplifier DJA 800:

The Studiomaster DJA 800 power amplifiers are planned to give accurate, dynamic power with the legendary Studiomaster Professional sound character and reliability that specialists depend on. It provides mains voltage operation 220V AC-240V AC as well as low voltage operation (150V AC). Its LED Indicators on the front panel for power, Signal, Clip, bass boost and Protect.

Product Specifications:

• Supercooling Fans.
• 19” rack mountable.
• Input: Equal XLR and 1/4” Jack.
• Output: Speakon and Binding Post Connectors.
• Stereo, Bridge and Parallel mode choice switch.
• Protection: Temperature ,DC Short Circuit.
• Strong and safe Professional Stereo Power Amplifier.
• EQ Processing, Low Cut, Subwoofer preference options on the rear panel.

Product Information:

• Brand: Studiomaster
• Model number: DJA 800
• Damping factor: > 350 :1 (8 Ω)
• Frequency Response: 20Hz - 20kHz (-3dB)
• Dimensions (W x D x H): 482 x 456 x 88mm (2U)
• Net Weight (Kgs.): 12.5
• Power output- 4Ω, 20Hz-20kHz 1% THD: 2 x 250 W (True RMS)
• Power output - 4Ω (EIA), 1kHz, 1%THD: 2 x 415 W
• Power output - 8Ω, 20Hz-20kHz, 1% THD: 2 x 165 W (True RMS)
• Power output - 8Ω (EIA), 1kHz , 1%THD: 2 x 245 W
• Bridge Mode 8Ω (True RMS), 20Hz-20kHz, 1% THD: 525 W
• Bridge Mode 8Ω (EIA), 1kHz , 1%THD: 830 W
• Protection Devices: Temperature, DC, Short Circuit, Soft Start
• Input Connector (Per Channel): XLR, 1/4” TRS Jack
• Output Connector (Per Channel): Speakon / Binding Posts / 6.3mm Jack.

• Country of origin: China
• Manufacturer details: STUDIOMASTER
• Packer details: STUDIOMASTER
• Importer details: STUDIOMASTER
