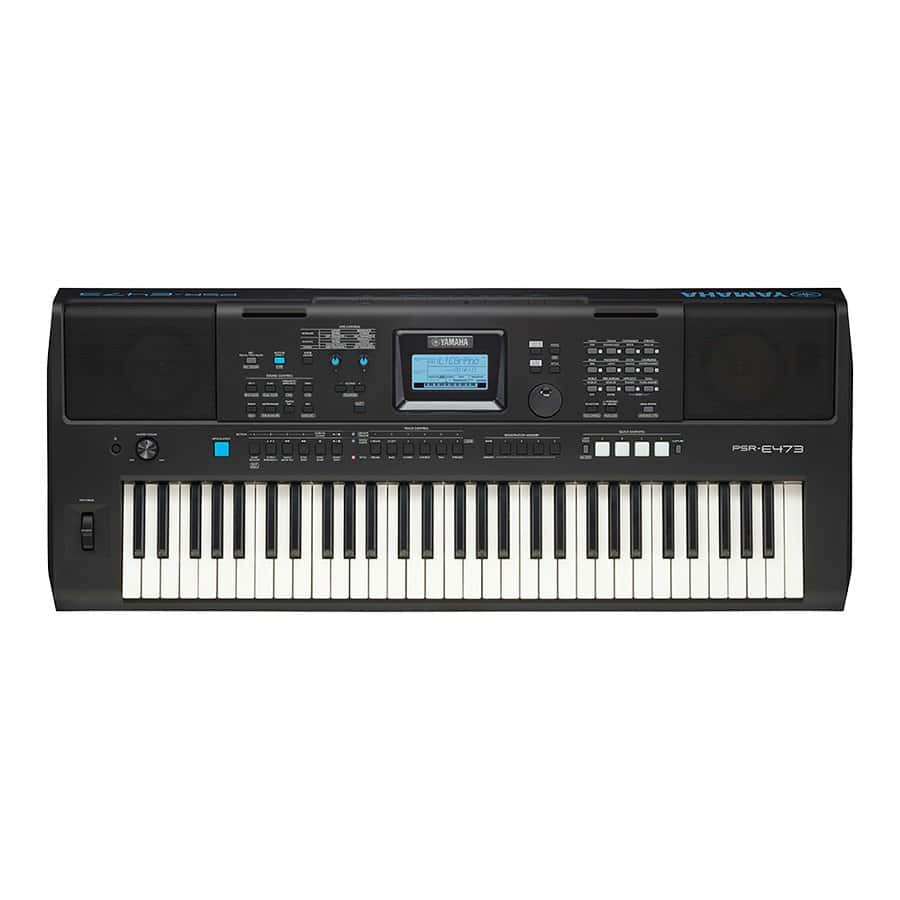

Yamaha PSR E473 61 Keys Black Portable Keyboard

Description

Yamaha PSR E473 61 Keys Black Portable Keyboard

Yamaha PSR E473 61-Keys Black Portable Keyboard introduced with powerful sound engine and touch-sensitive keys to offer you incredible sound and incredible feel in an all-new portable instrument. This amazing all-around 61-key keyboard is perfect as a starter instrument but also represents a powerful alternative for professional players. The advanced PSR-E473 features a newly developed tone generator that provides incredible improvements in sound quality as well as pro-quality effects such as delays.

Sound like a pro!

The PSR-E473 offers the same pro-quality sound found in high-end models. Also equipped with augmented effects and a broad range of styles—from the modern hits to genres from around the world.

---

Express yourself

Yamaha updated the control panel and LCD, phased out the numeric keypad, added Direct Category Access controls.

The advanced control panel makes it fast and comfortable to access Styles, Voices, and functions so that you can concentrate your time on being creative.

Including Quick Sampling, dedicated buttons, and innovative Motion Effect functionality, you can automatically express the sounds you're hearing in your head.

---

Voices

Enjoy 820 realistic, dynamic instrument sounds from here and around the world with pro-level sound quality. The PSR-E473 develops on earlier generations with an increased internal storage capacity that lets Yamaha deliver more, higher-resolution instrument Voices.

---

Super Articulation Lite

Yamaha keyboard is loaded with Super Articulation Lite, a function that realistically simulates the unique ways each device is played, for example, the scratch sound of a warped electric guitar or the harmonics of a nylon-string guitar.

---

Styles

Pick from 290 automatic complement styles including dance, rock, and jazz as well a broad range of musical genres from around the world. Enjoy the delight of playing in your very own band as the Styles respond to your left hand with just the right bass, rhythms, and chords.

---

World content

Experience Styles and Voices that allow you to simulate music from anywhere around the world. No issue what style you want, it is authentic and loyal to the country or region where that genre originated.

---

DSP effects

This PSR-E473 is one of the only models in the PSR-E series to feature two channels for insertion effects. Outfitted with the most delinquent LSI tone generator, this instrument provides high-quality effects previously available only with high-end models.

---

Individual L/R output

In addition, it comes with left and right audio outputs that let you smoothly connect to studio equipment and PA systems - separate from the headphones jack.

---

Mega Boost

Just Press the Mega Boost switch to add +6dB of effective volume!

This Mega Boost adds 6dB to the clear volume set by the volume knob. Adding a growth to the instrument's speaker volume lets you play with others or be heard above the crowd, even without a PA system.

---

Mic Input & Vocal Effect

It also features a mic input that allows you to connect a mic and start singing with your playing while utilizing built-in pro-quality vocal effects, equipping you with everything you require for a pro-sounding performance.

---

USB Audio Interface/Recording

Use the USB To Host port to send and receive audio and MIDI data to and from computers and smart devices with studio-quality. Utilize the USB To Device port to record and playback audio files of your music from USB flash drives.

---

Registration memory

With PSR E473 you can save your favorite Voice and control panel settings so that you can call them up in an instant with the touch of a switch, precise while playing. No requirement to search for Styles, Voices, and settings.

---

Dual/Layers

Dual-layer different instrument Voices to produce endless combinations that result in original, broader, thicker, and sound.

---

Split

Split feature allows you to slip the keyboard wherever you like and assign various Voices to each side to experience playing one Voice on the left side and another on the right at the same time.

---

Product Features:

• 820 Voices and Super Articulation Lite Voices
• 290 Styles, Quick Sampling
• 2 channels/41 types of DSP insertion effects
• Groove Creator and Mega Boost
• Live Control Knobs, Motion Effect functionality, pitch bend wheel
• Direct Category Access buttons
• USB Audio Recording/Interface
• Mic input and vocal effects
• Individual L/R outputs

---

Product details:

• Brand: Schecter
• Model Number: PSR E473
• Color: Black
• Number of Keys: 61
• Touch Response: Yes (Soft, Medium, Hard, Fixed)
• Keyboard Type: Organ-style
• Pitch Bend Controller: Yes
• Art. Switches: Yes
• Control Knobs: 2
• Display Type: LCD
• Backlight: Yes
• Panel Language: English
• Tone Generating Technology: AWM Stereo Sampling
• Number of Polyphony (Max.): 64
• Number of Voices: 820 (294 Panel Voices + 28 Drum/SFX kits + 40 Arpeggio + 458 XGlite Voices)
• Featured Voices: 3 Live! Voices, 9 Sweet! Voices, 6 Cool! Voices, 14 Super Articulation Lite Voices
• GM Compatibility: Yes
• XGlite Compatibility: Yes
• DSP Effect: DSP1: 41 types, DSP2: 12 types
• Reverb Type: 12 types
• Chorus: 5 Types
• Master EQ: 4 Types
• Dual/Layers Function: Yes
• Split Function: Yes
• Melody Suppressor: Yes (w/ pan adjustment)
• Crossfade: Yes (between Internal Sound and External Audio)
• Number of Preset Styles: 290
• Fingering: Multi-finger, Smart Chord
• Style Control: ACMP ON/OFF, SYNC START, SYNC STOP, START/STOP, INTRO/ENDING/rit., MAIN/AUTO FILL, TRACK ON/OFF
• One-Touch Setting (OTS): Yes
• Expansion Style: 10
• Compatibility: Style File Format (SFF)
• Number of Groove: 35
• Number of Sections: 5 (4 Sections + 1 Musical Climax/Ending)
• Number of Preset Songs: 30
• Number of Songs: 10
• Number of Tracks: 6 (5 Melody + 1 Style/Groove Creator)
• Data Capacity: Approx. 19,000 notes (when only “melody” tracks are recorded)
• Compatible Data Format Playback: SMF (Formats 0 & 1)
• Compatible Data Format Recording: Original File Format (SMF 0 conversion function)
• Recording Time (max.): 80 minutes (approx. 0.9 GB) per Song
• Sampling Type: One-shot, Loop
• Samples (Preset/User): 4
• Sampling Time: Approx. 9.6 sec
• Sampling Sources: AUX IN, MIC INPUT, USB audio interface, WAV format files
• Sampling Format: Original File Format (16 bit, stereo)
• Sampling Rate: 44.1 kHz
• USB audio interface: 44.1 kHz, 16 bit, stereo
• Registration Number of Buttons: 4 (x 8 banks)
• Control: Freeze
• Metronome: Yes
• Tempo Range: 11 – 280
• Transpose: -12 to 0, 0 to +12
• Tuning: 427.0 – 440.0 – 453.0 Hz (approx. 0.2 Hz increments)
• Octave Button: Yes
• Scale Type: 5 types
• PIANO Button: Yes (Portable Grand Button)
• Other Functions: Mega Boost, Motion Effect (57 types)
• Harmony/Echo: 26 types
• Arpeggio: 152 types
• Internal Memory: Approx. 1.72 MB
• External Drives: USB flash drive
• DC IN: 12 V
• AUX IN: AUX INStereo mini jack x 1
• Headphones: HeadphonesStandard stereo phone jack x 1
• Sustain Pedal: Yes
• USB TO DEVICE: Yes
• USB TO HOST: Yes
• OUTPUT: Standard phone jack x 2
• Microphone: Standard phone jack x 1
• Amplifiers: 6 W + 6 W
• Speakers: 12 cm x 2
• Power Supply: AC Adaptor PA-150 or an equivalent recommended by Yamaha, or six "AA" size alkaline (LR6), manganese (R6) or Ni-MH rechargeable (HR6) batteries
• Power Consumption: 9 W (When using PA-150 AC adaptor)
• Auto Power Off Function: Off/5/10/15/30/60/120 (minutes)
• Music Rest: Yes
• Song Book: Download from Yamaha web site
• Dimensions: 992 x 136 x 404 mm
• Weight: 7.0 kg

• Country of origin: China
• Manufacturer details: YAMAHA
• Packer details: YAMAHA
• Importer details: YAMAHA
