Zoom UAC 8 USB 3.0 Audio Interface

Description

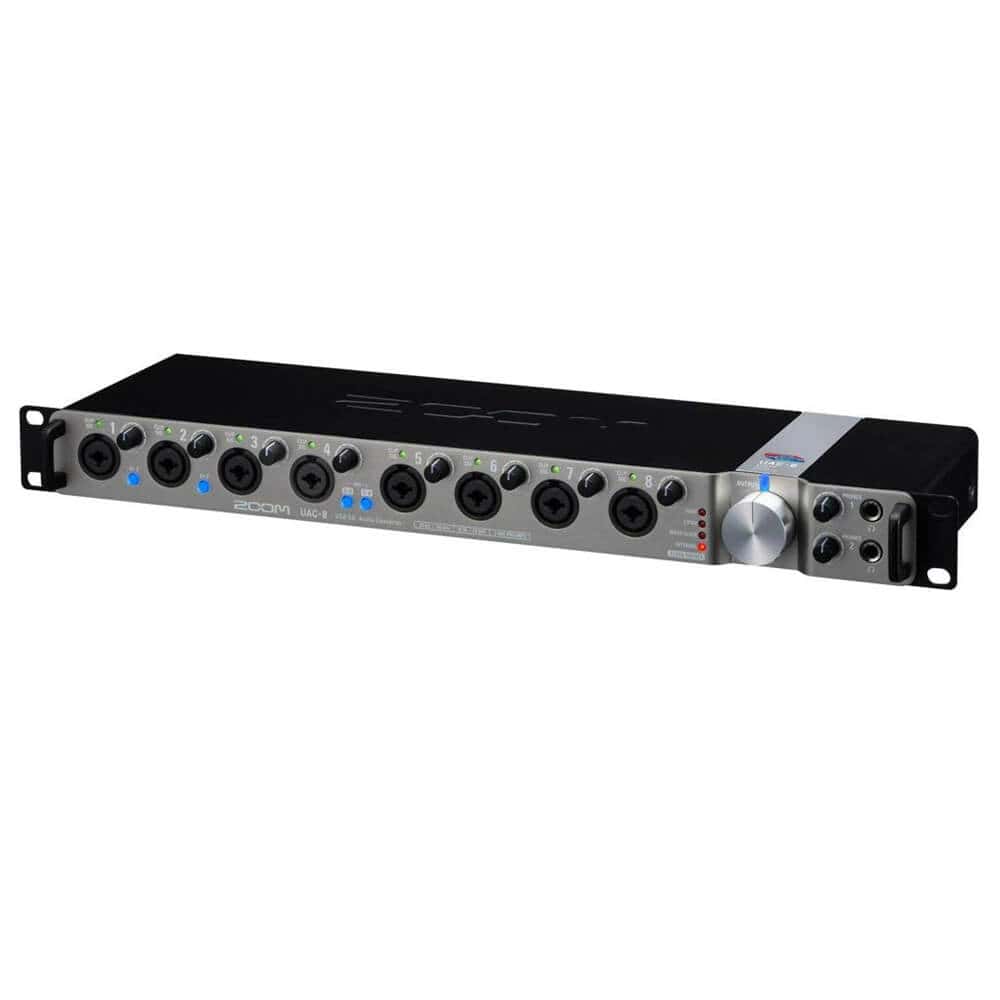

Zoom UAC-8 USB 3.0 Audio Interface

Zoom UAC-8 USB 3.0 Audio Interface arrives with enough channels and low latency to record your entire band or multitrack drums properly. Decorated with 8 of Zoom's high-quality mic pres and a complete complement of analog I/O plus MIDI connectivity, combines serious multitrack recording abilities and more to your studio setup. Also behind the scenes, Zoom's MixEfx software increases your recording power, with simple access to onboard effects and critical settings processing.

A collection of XLR/TRS combo jacks in the front allows you to hook up instruments, mics or line signals in seconds. This UAC-8 utilizes top-end Burr-Brown converters to obtain top-notch audio. A complete set of TRS jacks in the back allows you to hook up your studio processors and powered monitors and ADAT and S/PDIF digital I/O for developing your rig.

This UAC-8 not only records, but it also offers 4 times the upsampling of your signal during the digital-to-analog and analog-to-digital conversion. Therefore, when the sampling frequency is set to 44.1kHz, the UAC-2 is preparing the signal at 176.4kHz, which helps decrease aliasing noise and enhances clarity. Moreover, you can add effects like echo or reverb to give vocalists a more reliable monitoring experience. You will also be able to allow a loopback mode that lets you mix the input signals with playback from a computer source, primarily useful for live internet streaming.

Product Features:

• 20-out, 18-in USB 3.0 audio interface.
• Very low latency audio.
• MIDI I/O allows you to use MIDI control surfaces and sequence external hardware.
• UAC-8 MixEfx application enables you to add reverb or delay effects to inputs and outputs.
• Phantom power to manage your favorite condenser mics.
• 8 XLR/TRS combo input jacks for line and mic sources, enough for your whole band.
• LED meters to control your input and output levels.
• All-metal design is available for reliable use in the field.

Product Details:

• Brand: Zoom
• Model Number: UAC-8
• Computer Connectivity: USB 3.0
• Form Factor: Rackmount
• Simultaneous I/O: 18 x 20
• Number of Preamps: 8
• Phantom Power: Yes
• A/D Resolution: 24-bit/192kHz
• Analog Inputs: 8 x XLR/TRS Combo
• Analog Outputs: 8 x 1/4 inch (Line), 2 x 1/4 inch (Main), 2 x 1/4 inch (Headphones)
• Digital Inputs: 1 x Optical,1 x Coax
• Digital Outputs: 1 x Optical, 1 x Coax
• MIDI I/O: In/Out
• The clock I/O: 2 x Word Clock
• Rack Spaces: 1U
• Height: 1.8 inc
• Width: 19 inch
• Depth: 6.2 inch

• Country of origin: China
• Manufacturer details: ZOOM
• Packer details: ZOOM
• Importer details: ZOOM
