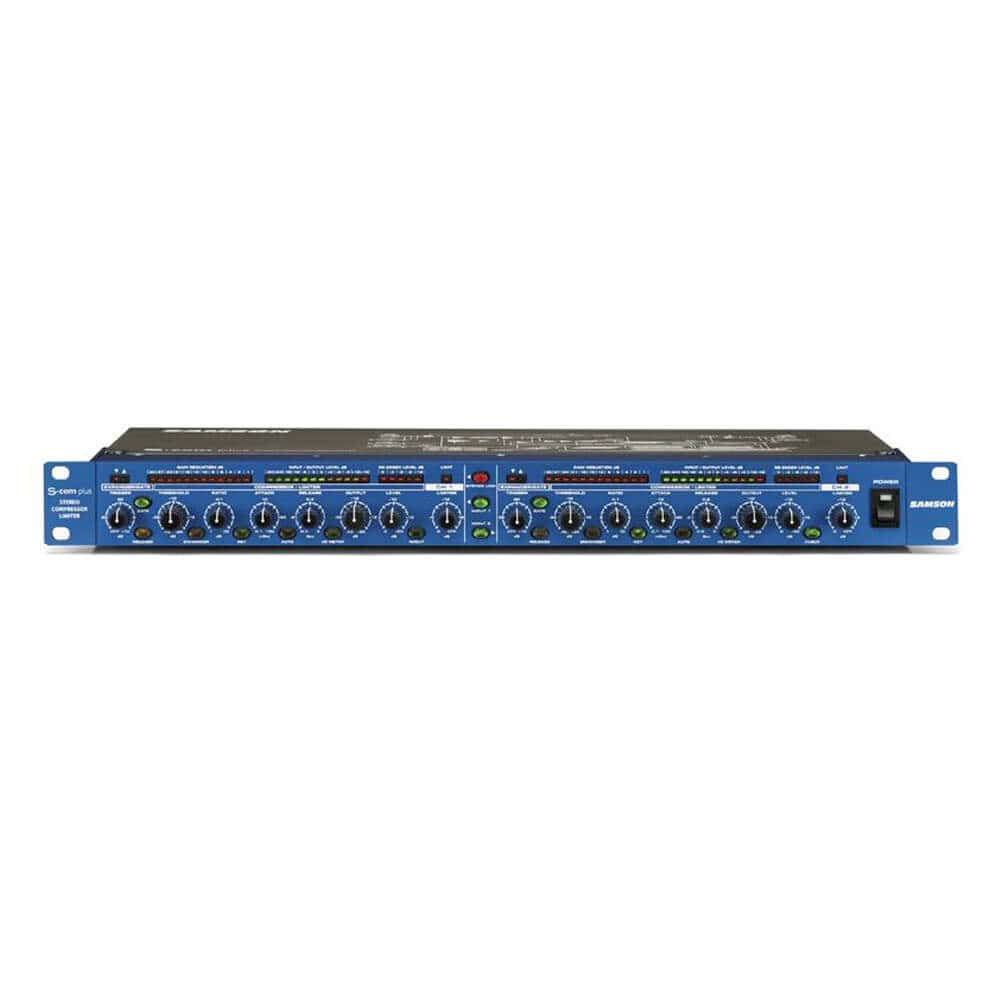

Samson S-com Plus S Class 2 Channel Compressor Limiter
Samson S-com Plus 2 Channel Compressor Limiter is perfectly designed for conditions where more flexibility is needed to optimize signal levels by providing essential control along with the simplicity of administration. The S-com plus's extensive and wide-ranging controls give extensive manipulation of audio dynamics, also in the most complex situations.
Every channel features an extensive range of variable control. Also, the feature-rich compressor section includes a variable Ratio, Threshold, Attack, and Release controls. The Smart Knee Detector circuit dynamically alters the compression curve to secure a musical result. It comes with Auto Envelope Generator (AEG) feature simplifies the best settings by constantly examining the audio input and automatically adjusting the attack and release parameters based on the changing level. Key Outputs and Inputs are added for externally processing the control voltage.
The Gate or Expander features a changeable threshold level and switchable release time (slow or fast). The Gate key changes the downward expander ratio from light to hard gating for government ranging from subtle to an apparent effect. A dedicated Peak or Limiter with mutable control presents protection against peak and overload freely of the compressor. While used in combination with the Compressor the Peak or Limiter provides even more specific control over dynamic levels. An operative De-Esser enhances audio quality by removing S from vocals and sibilance from overly brilliant signal sources such as cymbals. The Enhancer key involves the EFR (Enhanced Frequency Recovery) circuit, which restores powerful frequencies that are sometimes reduced by heavy compression. Comprehensive metering includes Input or Output, De-Esser Level, Gain Reduction, Gate Open/Close.
- Expander/Gate, Compressor/Limiter, De-Esser with Peak Limiter.
- Switchable fast/slow release and variable trigger control.
- Alterable De-Esser with an independent LED meter for overcoming sibilance.
- Developed circuit design utilizing low noise operational.
- Amps and high-quality VCA's.
- Servo balanced outputs and inputs on XLR and 1/4-inch connectors.
- Smart Knee Detector circuit switches from soft to hard knee based on the level of the input signal applied.
- Auto Envelope Generator style uniformly adjusts the compressor's attack and release times.
- Brand: Samson
- Model Number: S-com Plus
- Series: S Class
- Type: Compressor Limiter
- Function: Compressor/Limiter, Gate and De-Esser
- Number of Channels: 2
- Inputs: 2 x XLR, 2 x 1/4 inch TRS phone, 2 x 1/4 inch TS phone Sidechain
- Output: 2 x XLR, 2 x 1/4 inch TRS phone,2 x 1/4 inch TS phone Sidechain
- Maximum Input Level: +21dBu
- Compression Threshold: -40dBu to +20dBu
- Compression Ratio: 1:1 to infinity:1, variable
- Attack Time: 0.03ms to 300ms
- Release Time: 0.5ms to 5 Sec
- Gate Threshold: Off to +10dB
- Gate Rate; Attack: <1ms per 50dB
- Release: Fast or Slow
- Maximum Output Level +21dBu
- Make-up Gain: -20dB to +20dB
- Frequency Response: 10Hz to 20kHz
- Dynamic Range: 116dBu
- Dimensions: 1U rack mount, 7 3/4 -inch deep
- Specialties: Unit will operate at either +4
- Weight: 3.3 kg
- Dimensions; 23.2 x 11.6 x 4.5 inch
- 1-year manufacture warranty
