Studiomaster Min Mixer Cub 6

Studiomaster-Buy Studiomaster Min Mixer Cub 6 online in India at devmusical

Rs. 5710.00


Delivery Days - 5 to 8
Stock - Available

Brand - STUDIOMASTER

Vendor - Bhandari Musical Shoppe


0 Users have rated. Average Rating 0

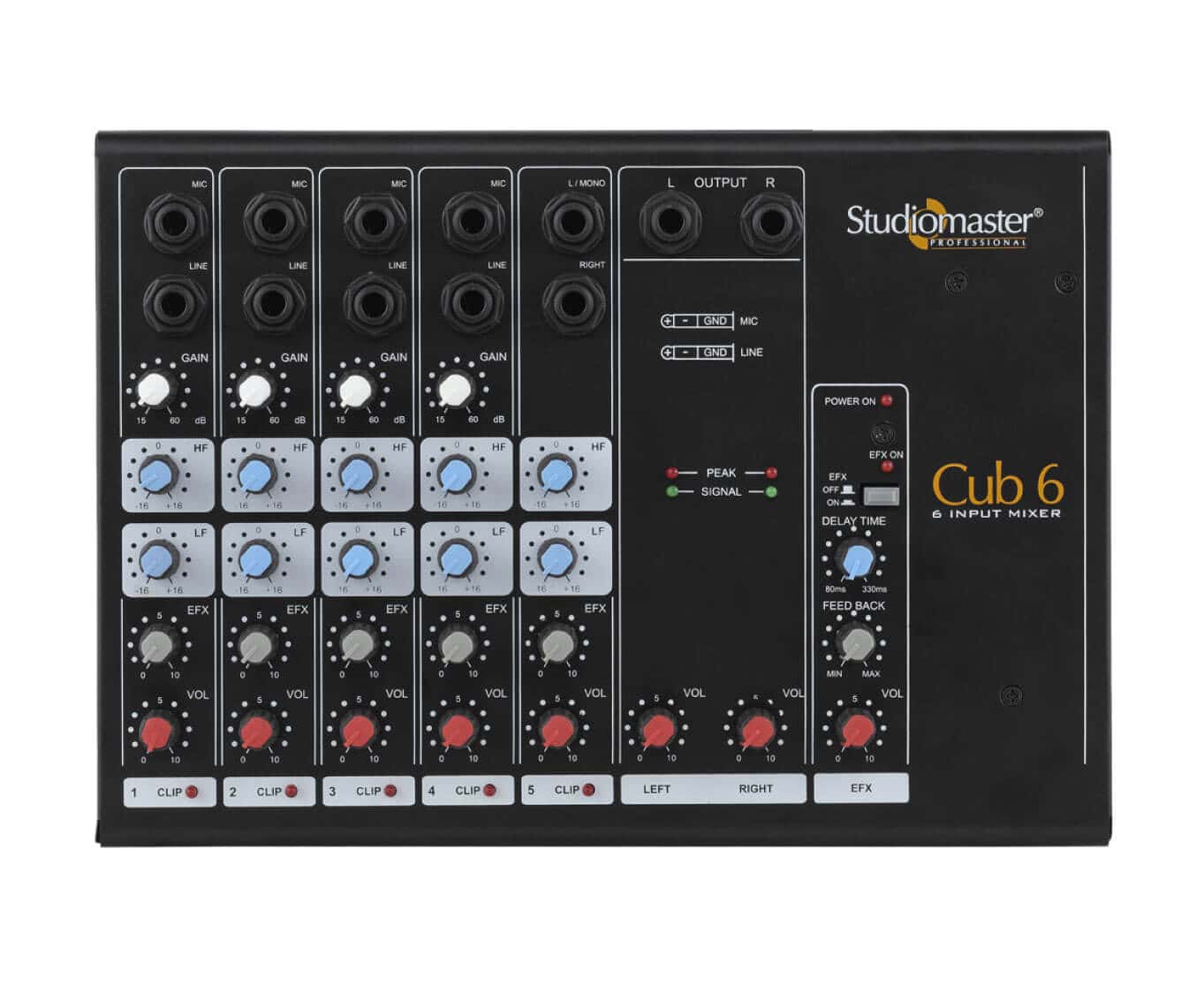

Studiomaster  Min Mixer  Cub 6

The Cub Series from Studiomaster Professional are a range of high quality compact mixers designed with features suitable for both beginners as

 well  professionals.

  • 5 Channel mixer with Delay EFX
  • 4 Mono, 1 Stereo Input.
  • Balanced 1/4” phono jack for Mic/Line Inputs.
  • High quality Built-in echo with dedicated delay & feedback control
  • Gain control with 2 band EQ per channel.
  • ¼” TRS Jack unbalanced L/R Main Output
Specifications

Model

 CUB 6

Nominal Gain (Mic/Line/Stereo Line)

65dB/55dB/0dB

Max Gain (Mic/Line/Stereo Line)

83dB/73dB/18dB

Input Levels Sensitivity

Mic (Gain Min/Gain Max)

+4dBu / -65dBu

Line (Gain Min /Gain Max)

+14dBu / -55dBu

Input impedence

Mic Input

Typically 5K O balanced

Line input

20K O (Balanced) /10K O (Unbalanced)

Stereo Line

20K O (Balanced) /10K O (Unbalanced)

Main Output level (Nominal /Max)

0dBu (0.775V RMS) / +17dBu (5.5V RMS)

Main Output Impedance

<50 O

Frequency Response

25Hz to 19KHz (+0/-1 dB)

Total Harmonic Distortion

Better than 0.8%

Signal to Noise Ratio

-76 dB

Clip indication

4 dB prior to true clip

Equalisation (Treble/Bass)

±16dB @ 10KHz/100 Hz

EFX & USB

EFX

Power supply

150V~250V AC/50Hz

Dimensions (W x D x H in mm)

275 x 208 x 77

Net Weight (Kgs.)

1.5
