Studiomaster Min Mixer Air 4

Studiomaster-Buy Studiomaster Min Mixer Air 4 online in India at devmusical

Rs. 8670.00


Delivery Days - 5 to 8
Stock - Available

Brand - STUDIOMASTER

Vendor - Bhandari Musical Shoppe


0 Users have rated. Average Rating 0

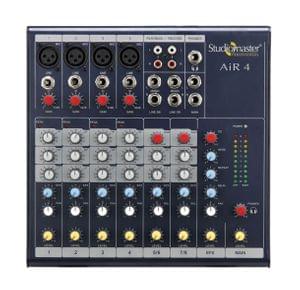

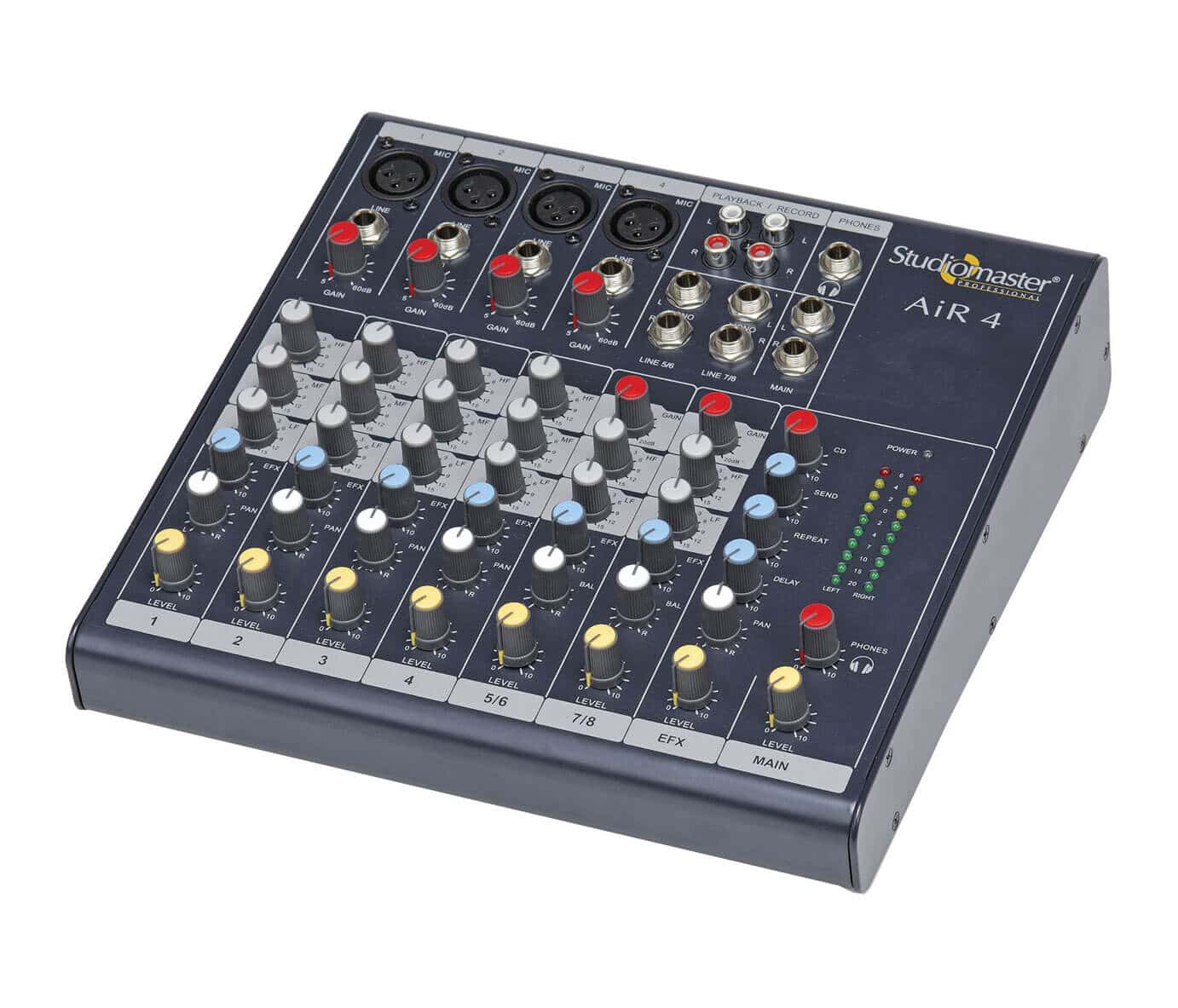

Studiomaster  Min Mixer Air 4

The Studiomaster Professional AiR 4 is a professional compact mixer designed to fit your needs, as well as your workspace. With the abundant features this mixer is ideal for applications ranging from small PA set-ups to broadcasters & home studios.

  • 4 Mic / Line + 2 Stereo Line Inputs
  • 3 Band EQ per channel
  • Rotary control knobs per channel
  • Delay EFX on board & FX send per channel.
  • Dual 10 Segment L/R LED meter for master level.
  • Stereo RCA CD In & Out with Control.
  • L/R Pan Pot & Clip LED per Channel
  • Headphone output with control
  • Balanced ¼” Jack Master outputs.
Specifications

Model

AiR 4

Gain (Mic/Line/Stereo Line)

60dB/40dB/20dB

Input Levels Sensitivity



Mic (Gain Min/Gain Max)

-5dBu / -60dBu

Line (Gain Min /Gain Max)

+6dBu / -40dBu

Stereo Line (Gain Min /Gain Max)

+10dBu / -20dBu

Main Output level (Nominal / Max)

+0dBu (0.775V RMS) / +20dBu (7.75V RMS)

Frequency Response

20Hz to 20KHz (+0/-3 dB)

Total Harmonic Distortion

< 0.03%

Signal to Noise Ratio

-85dB

Clip indication

4 dB prior to true clip

Equalisation (Treble/Mid/Bass)

±15dB @ 12KHz/120Hz-4KHz/80 Hz

EFX & USB

EFX

Power Supply

AC 240 V/50Hz

Dimensions (W x D x H in mm)

245 x 245 x 85

Net Weight (Kgs.)

2.25
