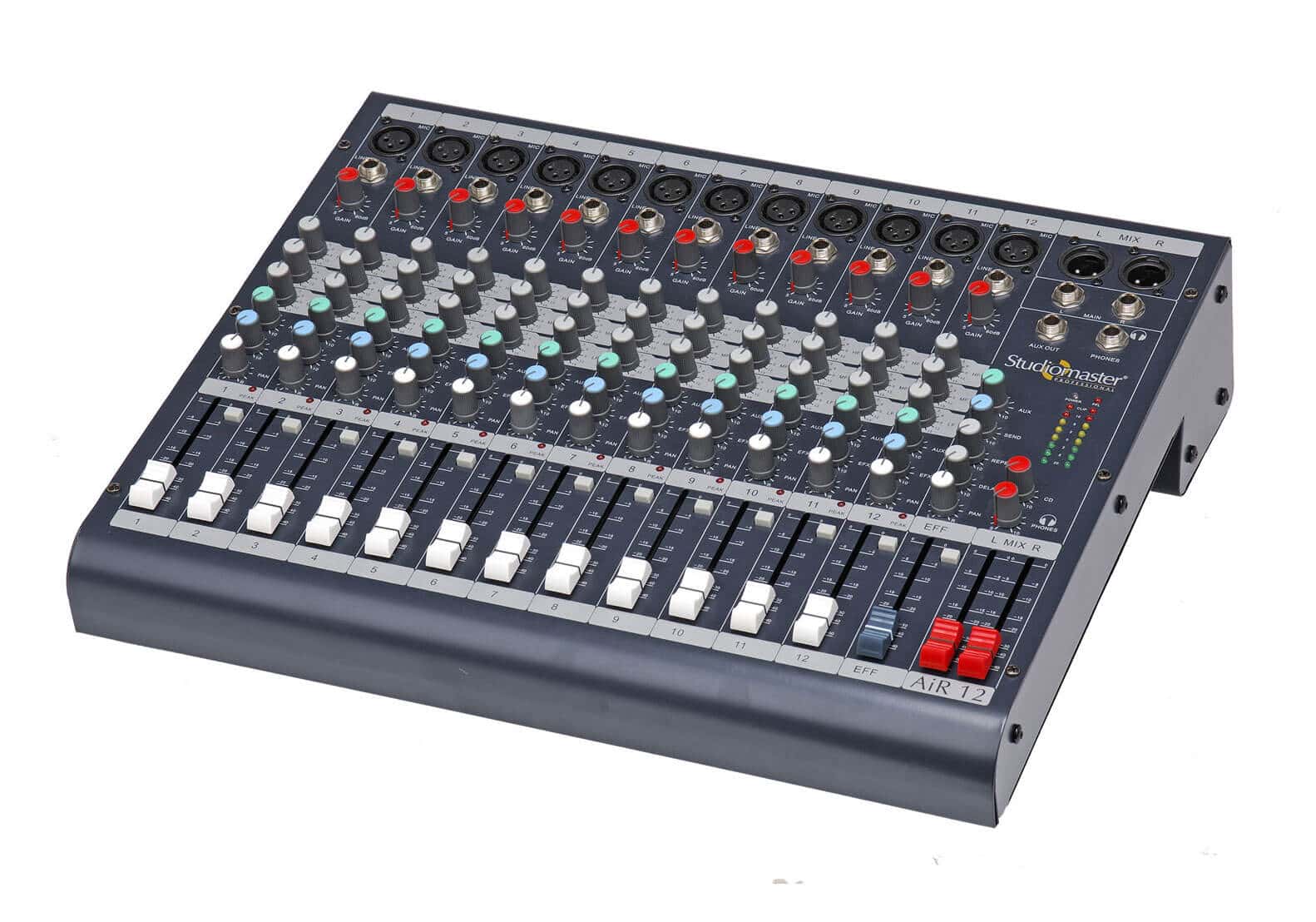

Studiomaster Multi Purpose Mixer Air 12

Studiomaster Multi-Purpose Mixer AiR 12:

The Studiomaster Multi-Purpose Mixer AiR 12 is the solution for budget-conscious users who decline to sacrifice sound character and reliability. It includes PFL (Cue) Switch with individual channel controller. Also, have L/R pan pot and clip LED per channel. It provides delay EFX on board and FX send per channel.

Product Specifications:

• 12 Mic / Line
• 3 Band EQ per channel.
• 1 Aux send.
• Stereo RCA CD input with Control.
• Headphone output with level control.
• Equitable XLR & ¼” Jack Master Output.
• 8 Segments L/R LED meter for master level.

Product Information:

• Brand: Studiomaster
• Model Number: AiR 12
• Gain (Mic/Line): 60dB/40dB
• Signal to Noise Ratio: -85dB
• EFX : Delay with repeat
• Power Supply: AC 240 V/50Hz
• Net Weight (Kgs.): 4.8
• Total Harmonic Distortion: < 0.03%
• Clip indication: 4 dB prior to true clip
• Dimensions (W x D x H): 410 x 335 x 115 mm
• Mic (Gain Min/Gain Max): -5dBu / -60dBu
• Line (Gain Min /Gain Max): +6dBu / -40dBu
• Frequency Response: 20Hz to 20KHz (+0/-3 dB)
• Equalisation (Treble/Mid/Bass): ±15dB @ 12KHz/2.5KHz/80Hz
• Main Output level: Nominal +0dBu (0.775V RMS) / Max  +20dBu (7.75V RMS)
