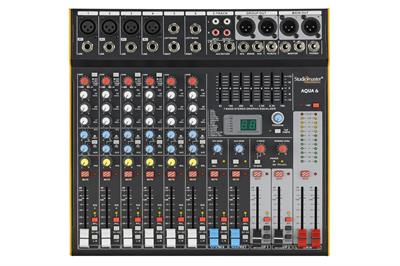

Studiomaster Multi Purpose Mixer Aqua 6

Description

Studiomaster Multi-Purpose Mixer Aqua 6:

The Studiomaster Multi-Purpose Mixer Aqua 6 is a Compact Professional mixer, created for a wide variety of applications. It has Mic / Line selectivity switch on each mono channel with 20 dB PAD for mic input. Also, have FS mute jack to attach to a standard footswitch to switch On/Off internal EFX. It combines Headphone and monitors outputs with a level controller. It is Built-in 24-bit Multi-FX processor with Tap Tempo.

Product Specifications:

• 2 Aux Sends - Aux + EFX
• 4 Mic/Line + 2 Stereo.
• 3 Band EQ per Channel.
• Stable XLR Outputs.
• 7 band stereo Graphic Equalizer.
• Stereo RCA Playback & record outputs.
• Mix, Group & PFL Routing per channel.
• L/R Pan control & signal LED per channel.
• Globally Switched +48V Phantom Power.
• 2 Subgroups with Individual outputs.

Product Information:

• Brand: Studiomaster
• Model Number: AQUA 6
• Phantom supply: +48V
• Dimensions (W x D x H): 322 x 317 x 134 mm
• Net Weight (Kgs.): 4.5
• Total Harmonic Distortion: < 0.006%
• Effects: 16 Effects, 24 -Bit EFX Processor
• Nominal Gain (Mic/Line/Stereo Line): 60dB/40dB/20dB
• Max Gain (Mic/Line/Stereo Line): 80dB/60dB/40dB
• Mic (Gain Min/Gain Max): -10dBu/ -60dBu
• Line (Gain Min /Gain Max): +10dBu / -40dBu
• Stereo Line: Gain Min  +10dBu / Gain Max -20dBu
• Frequency Response: 20Hz to 20KHz (+0/-2 dB)
• Mono MIC (Treble/Mid/Bass): ±15dB (12KHz HF / 2.5 KHz MF/60Hz LF)
• Stereo Line (Treble/Mid/Bass): ±15dB (12KHz HF / 2.5 KHz MF/80Hz LF)
