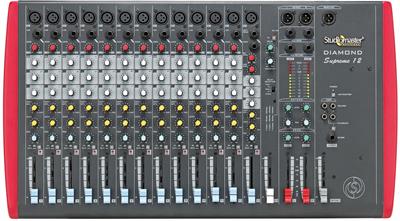

Studiomaster Multi Purpose Mixer Ds 12

Studiomaster Multi-Purpose Mixer DS 12:

The Studiomaster Multi-Purpose Mixer DS 12 is a feature-rich mixer series, suggested for a variety of applications. It Builts in Delay EFX with 3 Delay Modes, Feedback & Delay Controls. Also, have L/R Pan-Pot, Illuminated Mute Switch and Clip LED per Channel. It Separates Mono Output with Fader and Balanced XLR Output.

Product Specifications:

• 12 Mic / Line and 1 Mono / Stereo
• Balanced Mic/Line inputs
• 3 Band EQ per channel.
• Ster (Mono-Stereo) Inputs for full versatility.
• 2 Aux Sends with Stereo Aux Returns.
• 12 Segments L/R LED Meter for master Level.
• USB MP3 player with Remote
• Stereo Tape in/Tape Out & ¼” Headphone out
• Stable XLR Master Output.
• +48V Global Phantom power Switch.

Product Information:

• Brand: Studiomaster
• Model Number: DS 12
• Type of Product: Multi-purpose Mixer
• EFX & USB: FEX (delay )
• Phantom Supply: +48V
• Weight: 6.8 kg
• S/N Ratio: -76 dB
• Dimension: 657 x 376 x 89mm
• Mic Input: Typically 5K Ω balanced
• Main Output Impedance: <50 Ω
• Total Harmonic Distortion: Better than 0.8%
• Clip indication: 4 dB prior to true clip
• Power Supply: 150V~250V AC/50Hz
• Nominal Gain (Mic/Line): 60dB/40dB
• Max Gain (Mic/Line): 76dB/56dB
• Mic (Gain Min/Gain Max): -12dBu / -60dBu
• Line (Gain Min/Gain Max): +8dBu / -40dBu
• Frequency Response: 25Hz to 19KHz (+0/-1 dB)
• Line input: 20K Ω (Balanced) /10K Ω (Unbalanced)
• Equalisation (Treble/Mid/Bass): ±16dB @ 10KHz/2.5KHz/100 Hz
•  Main Output level (Nominal /Max): 0dBu (0.775V RMS) / +22dBu (10V RMS)
