Studiomaster Multi Purpose Mixer Ds 7

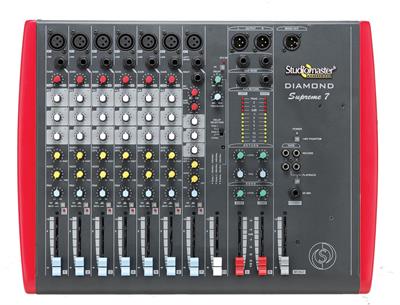

Studiomaster Multi-Purpose Mixer DS 7:

The DS7 is an Artistic Studiomaster Professional Diamond Supreme rich mixer approved for a variety of applications. It is a Built-In Delay EFX with 3 Delay Modes, Feedback & Delay Controls. It Distributes Mono Output with Fader and Balanced XLR Output. Also, have L/R Pan-Pot, Illuminated Mute Switch & Clip LED per Channel. It has a USB MP3 player with Remote (Only on DS 12U & DS 16U).

Product Specification:

• 6 Mic / Line and 1 Mono / Stereo
• Stable Mic/Line inputs
• 3 Band EQ per channel.
• MON: Ster (Mono-Stereo) Inputs for complete flexibility.
• 2 Aux Sends with Stereo Aux Returns.
• 12 Segments L/R LED Meter for master Level.
• Stereo Tape in/Tape Out & ¼” Headphone out
• Balanced XLR Master Output.
• +48V Global Phantom power Switch.

Product Information:

• Brand: Studiomaster
• Model Number: DS 7
• Main Output Impedance: <50 Ω
• Signal to Noise Ratio: -76 dB
• EFX & USB: EFX ( Delay)
• Phantom Supply: +48V
• Power supply: 150V~250V AC/50Hz
• Dimensions (W x D x H): 477 x 376 x 89 mm
• Net Weight (Kgs.): 5
• Nominal Gain (Mic/Line): 60dB/40dB
• Max Gain (Mic/Line): 76dB/56dB
• Mic Input: Typically 5K Ω balanced
• Clip indication: 4 dB prior to true clip
• Frequency Response: 25Hz to 19KHz (+0/-1 dB)
• Mic (Gain Min/Gain Max): -12dBu / -60dBu
• Line (Gain Min /Gain Max): +8dBu / -40dBu
• Line input: 20K Ω (Balanced) /10K Ω (Unbalanced)
• Total Harmonic Distortion: Better than 0.8%
• Equalisation (Treble/Mid/Bass): ±16dB @ 10KHz/2.5KHz/100 Hz
• Main Output level (Nominal /Max): 0dBu (0.775V RMS) / +17dBu (5.5V RMS)
