Samson Airline 77 Handheld Microphone Wireless System

Description

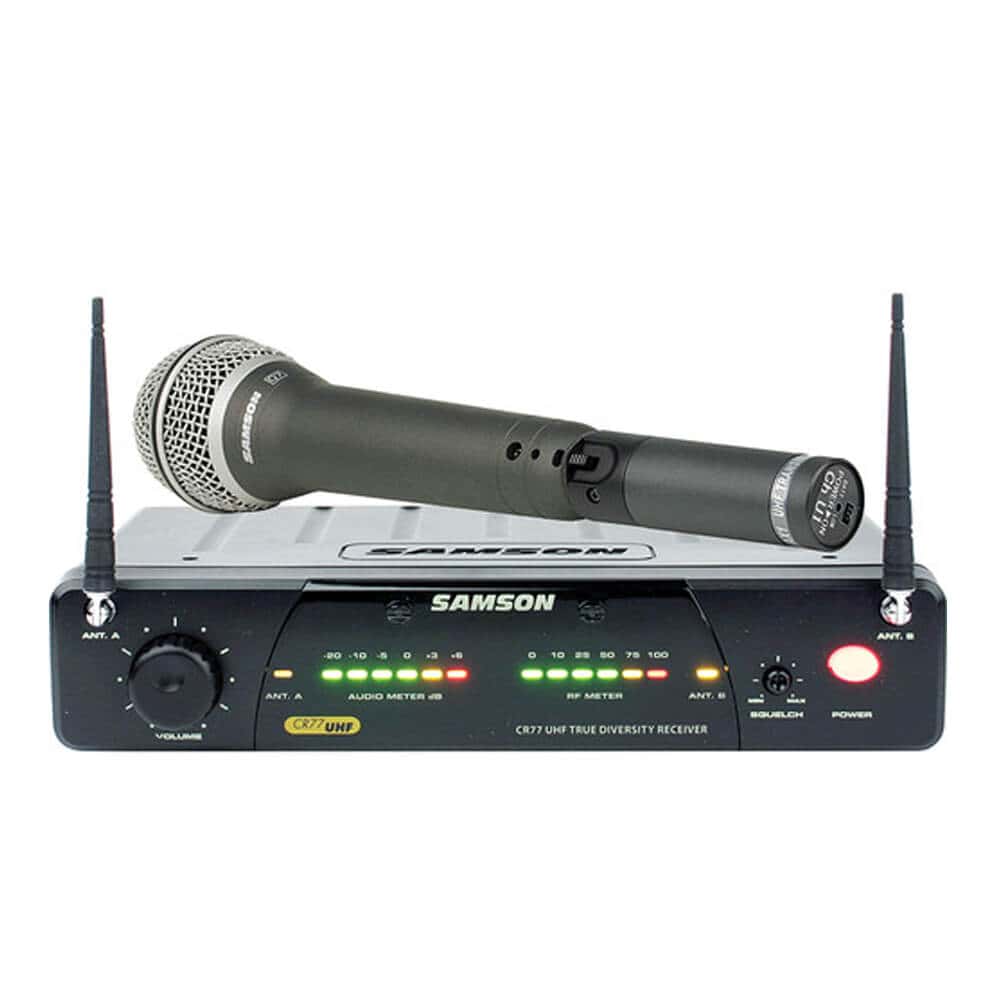

Samson Airline 77 Handheld Microphone Wireless System

Samson Airline 77 Handheld Microphone Wireless System designed to give you a wireless experience, full freedom of mobility. This system includes the AX1 handheld transmitter and the CR77 receiver, which connects into any conventional dynamic microphone to make it wireless. A Samson Q7 dynamic mic is also added for a total solution.

Lightweight and small, the AX1 clips directly into any powerful microphone you want to use. All of the AirLine transmitters work on cheap and lightweight AAA batteries that allow 14 hours of operation on a single battery. The Q7 is a dynamic handheld microphone that excels in both recording applications and live performance. Decorated with a linear frequency response for higher reproduction, it is also intended to withstand high sound pressure levels. Offers a high level of sensitivity, the Q7 will pull up all the subtleties of any performance with outstanding clarity and detail.

Also, it uses a tight super-cardioid pattern to decrease feedback and effectively reject signals not arising directly in front of the mic capsule. The focus of the receiver system is the CR77 actual diversity half-rack UHF receiver. It operates flawlessly with all AirLine UHF transmitters. Als arrives with a front panel display with RF level LED meters and large multi-segment audio level, rotary volume control that provides easy adjustment of audio output.

Product Features:

• AX1 transmitter clips into any regular dynamic mic to make it wireless.
• Transmitter features power/battery LED, power switch, and input level control.
• Single AAA battery operation provides up to 14 hours of life for AX1.
• Samson Q7 dynamic microphone also included.
• True diversity UHF wireless handheld system.
• PLL frequency with Squelch and volume control.
• CR77 receiver features a RF level LED meters and multi-segment audio level.
• XLR and unbalanced 1/4-inch outputs with mic or line level output switch.
• Also included AC adapter and 1/4-inch to 1/4-inch cable.

  ---

  Product Details:

• Brand: Samson
• Model Number: Airline 77 Handheld
• CR77
• Frequency Response: 50 Hz - 15 kHz
• Receiving Frequency Range: 801 – 805 MHz or 863 – 865 MHz Sensitivity: 8 dBm (@ THD 2%)
• T.H.D: 1% Max
• S/N Ratio (Overall)P: 90 dB (with IHF-A Filter)
• Dimensions: 216  × 115.75  × 43mm
• AX1
• Operating Power Voltage: 1.05V Minimum, 1.5V Typical, 2V Maximum
• Current Consumption: 60mA Typical
• Battery life: 14 Hours (AAA Battery)
• Frequency Stability: -40 kHz Maximum, 40 kHz Minimum
• Spurious: 1μW
• Modulation Factor: 15 kHz Typical, 13 kHz Minimum, 17 kHz Maximum, Input 1 kHz @ -20 dBv
• Input Impedance (Mic): 2kΩ
• Audio Frequency Response: 50 Hz – 15 kHz
• Controls: Power Switch, Volume
• Input: XLR (Female)
• Indicator: Power On (LED Flash), Low Battery (LED On)
• Q7
• Transducer: Dynamic

• Country of origin: China
• Manufacturer details: SAMSON
• Packer details: SAMSON
• Importer details: SAMSON
